HOPE Pick N Mix Headset

HOPE Pick N Mix Headset click to zoom image
HOPE Pick N Mix Headset click to zoom image
HOPE Pick N Mix Headset  click to zoom image
HOPE Pick N Mix Headset 2-Top ZS44/28.6 (for Spa Elan Frameset) click to zoom image

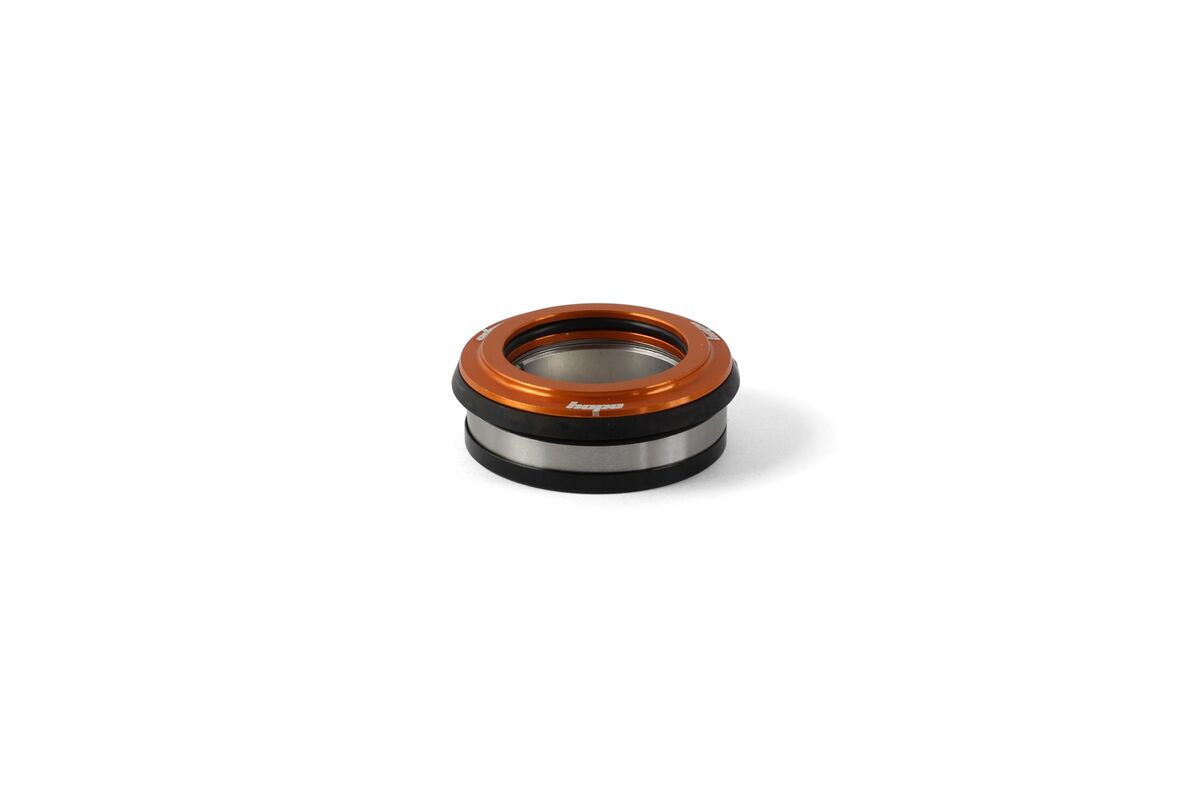

HOPE Pick N Mix Headset 3-Top IS41/28.6  click to zoom image
HOPE Pick N Mix Headset 4-Top ZS49/28.6  click to zoom image
HOPE Pick N Mix Headset 5-Top ZS56/38.1  click to zoom image
HOPE Pick N Mix Headset 6-Top EC49/38.1  click to zoom image
HOPE Pick N Mix Headset A-Bottom EC34/30  click to zoom image
HOPE Pick N Mix Headset B-Bottom ZS44/30  click to zoom image
HOPE Pick N Mix Headset C-Bottom IS41/30 (silver only) click to zoom image
HOPE Pick N Mix Headset D-Bottom ZS49/30  click to zoom image
HOPE Pick N Mix Headset E-Bottom ZS56/40  click to zoom image
HOPE Pick N Mix Headset F-Bottom EC49/40  click to zoom image
HOPE Pick N Mix Headset G-Bottom ZS55/40  click to zoom image
HOPE Pick N Mix Headset H-Bottom EC44/40 (for Spa Elan Frameset) click to zoom image

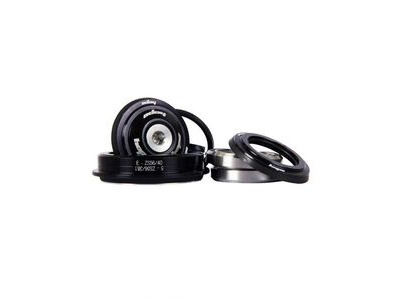

The Hope Pick'n'Mix range allows you to choose the top and bottom cups separately, covering you for almost every headset combination out there (price is for top or bottom part of headset). How about different colours top & bottom to match your club kit?

PLEASE STATE TOP & BOTTOM COLOURS REQUIRED IN THE ORDER COMMENTS
HOPE
Pricing
MSSP £40.00
OUR PRICE £37.00
Options 1-Top EC34/28.6
2-Top ZS44/28.6 (for Spa Elan Frameset)
3-Top IS41/28.6
4-Top ZS49/28.6
5-Top ZS56/38.1
6-Top EC49/38.1
A-Bottom EC34/30
B-Bottom ZS44/30
C-Bottom IS41/30 (silver only)
D-Bottom ZS49/30
E-Bottom ZS56/40
F-Bottom EC49/40
G-Bottom ZS55/40
H-Bottom EC44/40 (for Spa Elan Frameset)
Description The upper part of the headset is designated by a number, and the bottom part by a letter.

Pattern types:
EC = external cup (traditional)
ZS = zero stack (integral)
IS = integrated (bearings fit directly into frame)

Pattern numbers:
Upper, eg EC34/28.6 = 34mm upper head tube bore & 28.6mm stem clamp diameter
Stem clamp diameters are either 28.6mm (1 1/8") or 38.1mm (1.5")

Lower, eg ZS44/30 = 44mm lower head tube bore & 30mm crown race seat diameter
Crown race seat diameters are either 30mm (for 1 1/8" steerer tube) or 40mm (for 1 1/8-1.5" tapered or 1.5" steerer tubes)

- Headset cups use custom made, replaceable stainless steel bearings to resist corrosion
- The cups are all machined from 2014 T6 aluminium
- Sealing is achieved through an adjustable taper ring cover and integrated rubber seal
- Available in black, silver, red, blue, purple and orange
- Does not include Head Doctor top cap
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
